429CJ
Shaker Assembly
Large file
|

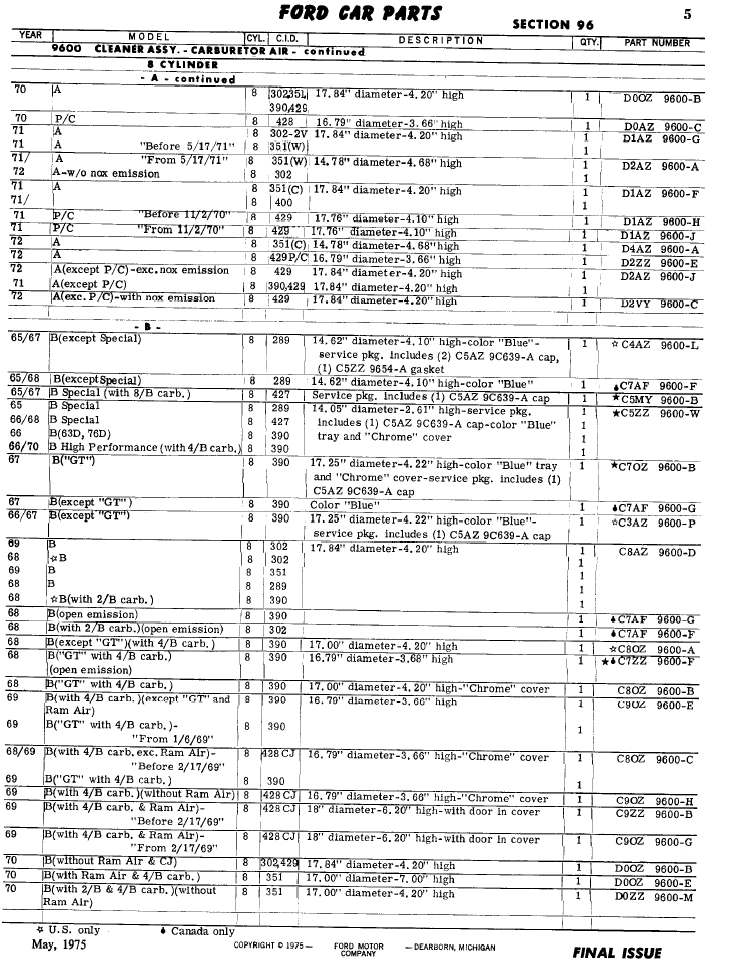

Air Cleaner Assemblies
|

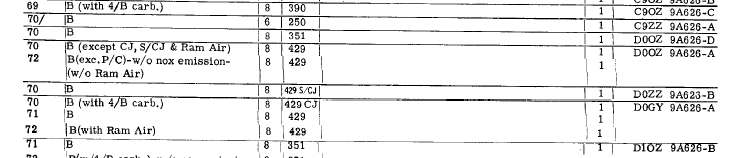

Duct
and Valve |
Scoop and Seal
|
|
|
Vacuum
Motor
|

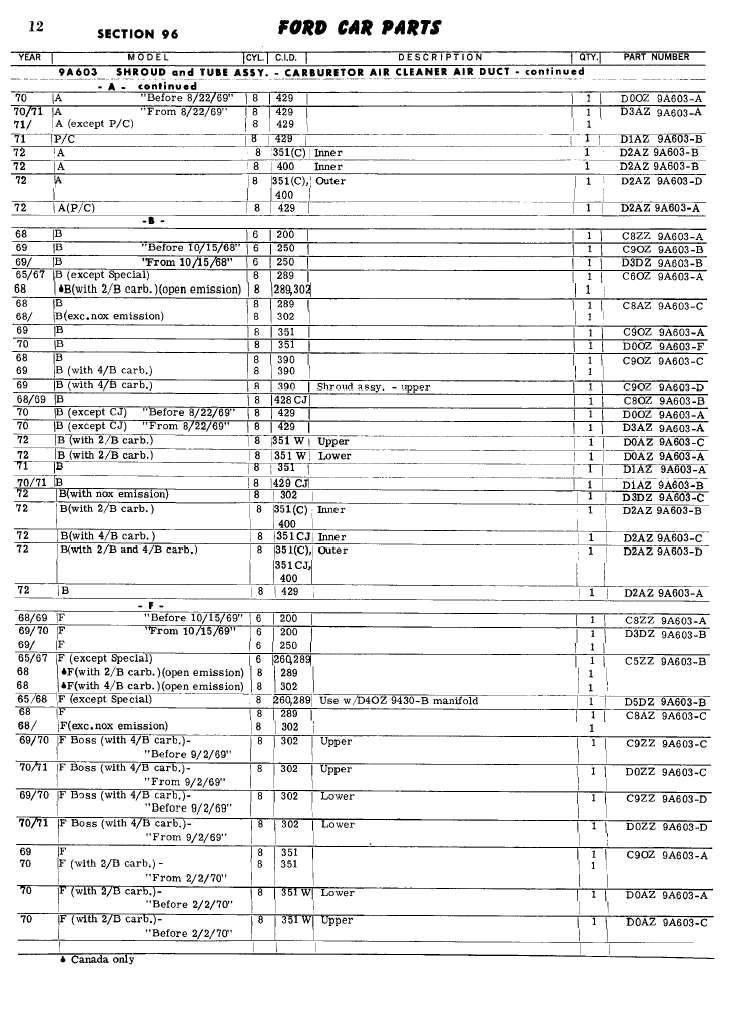

Shroud and Tube
|

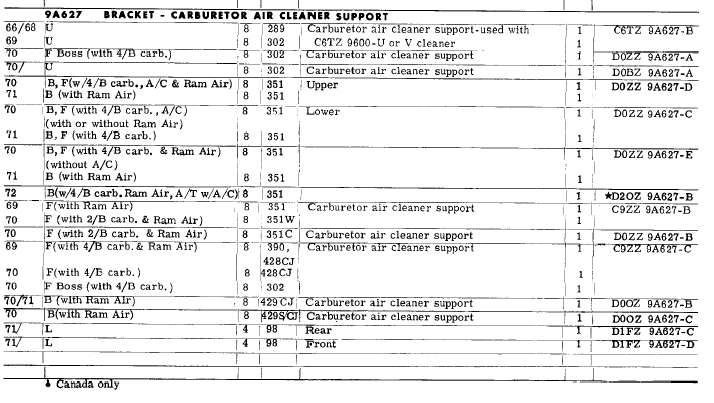

Air
Cleaner Support |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
![429_shakerbase2_ CJ.jpg (17559 bytes)](parts/429_shakerbase2__CJ_small.jpg) |
|

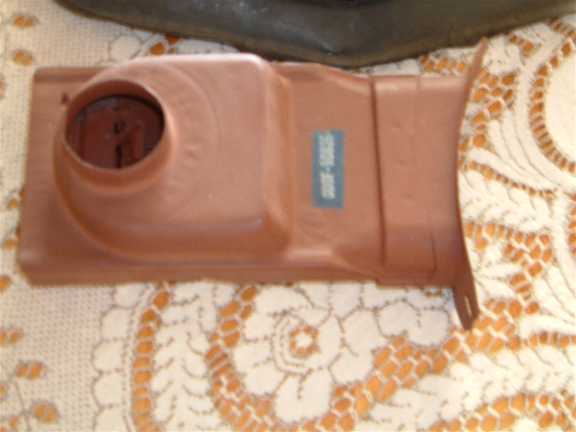

CJ
Snorkel |

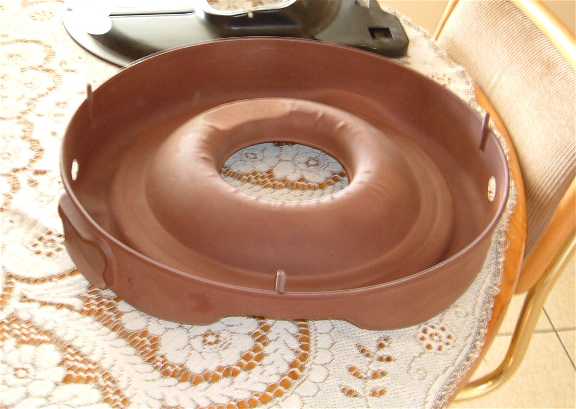

CJ
Shaker Base
|
CJ
Shaker Base |

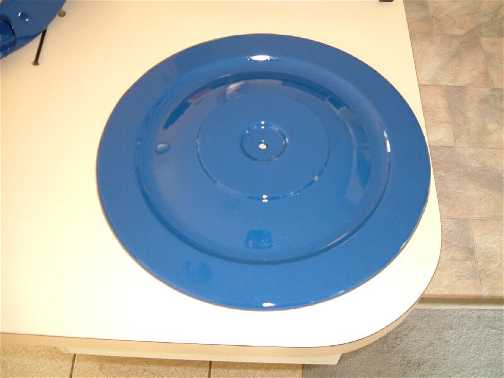

CJ
Shaker Base Lid
|
CJ
Hose and fittings |

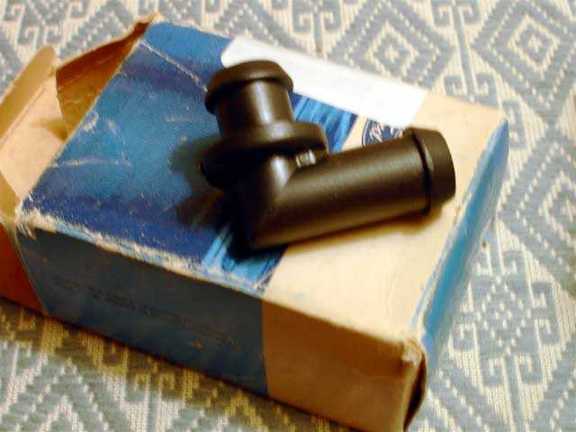

CJ
Shaker Base fitting
|
CJ
/ SCJ Shaker brackets and plug
|

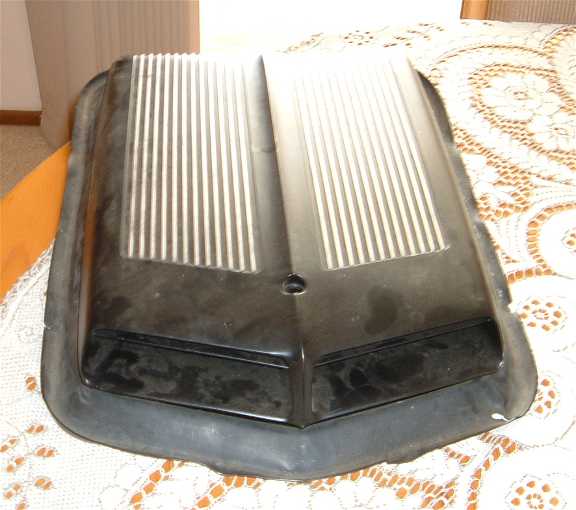

Shaker
scoop |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
SCJ
Shaker assembly - I have seen them this way and with the breather pipe
in front welded in (metal)
|

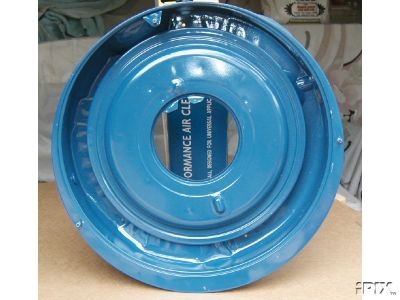

SCJ
Shaker assembly |
SCJ
Shaker assembly |

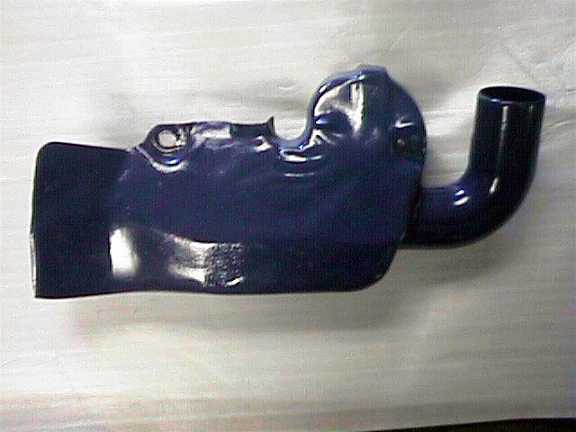

CJ
/ SCJ Heat Riser |

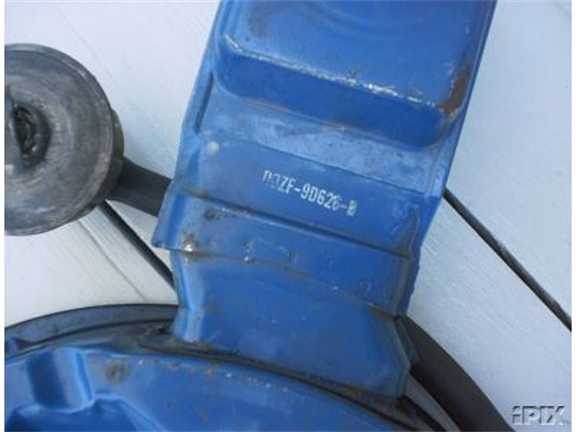

![snorkel_429_ 302_part_number.jpg (18074 bytes)](parts/snorkel_429__302_part_number_small.jpg) |

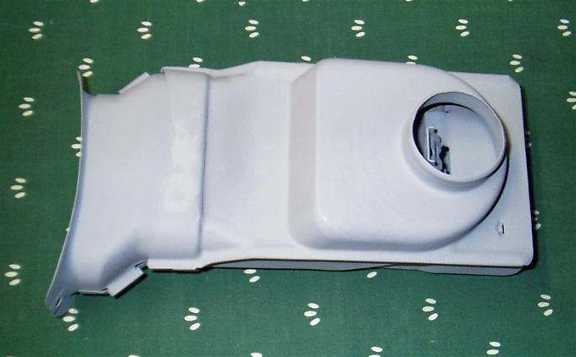

SCJ
Snorkel
|
SCJ
Snorkel
|
SCJ
Snorkel
|
SCJ
Snorkel part number |

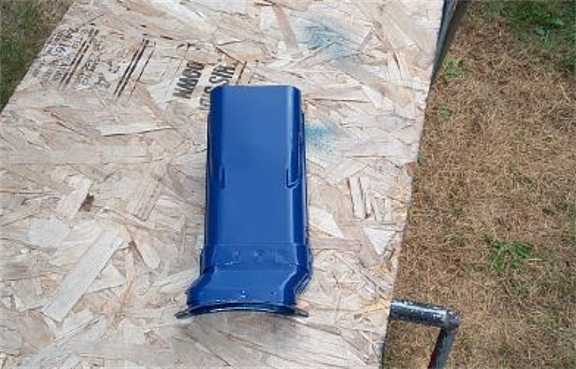

![SCJ_ snorkel_top.jpg (32121 bytes)](parts/SCJ__snorkel_top_small.jpg) |

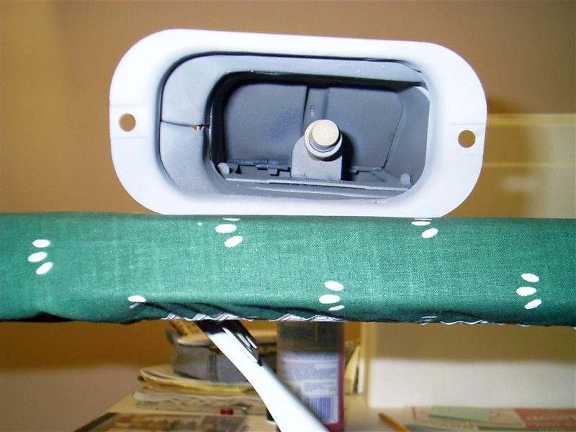

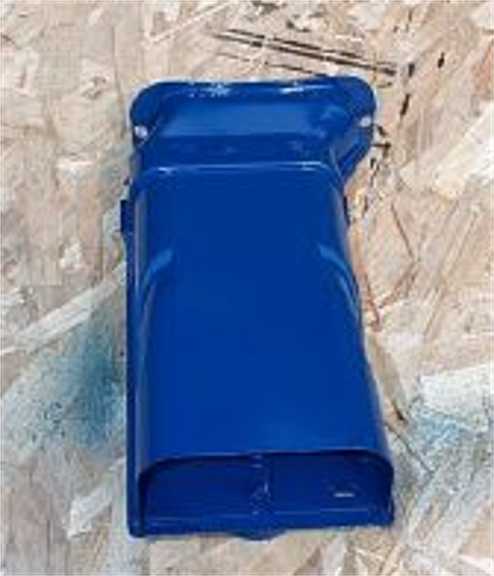

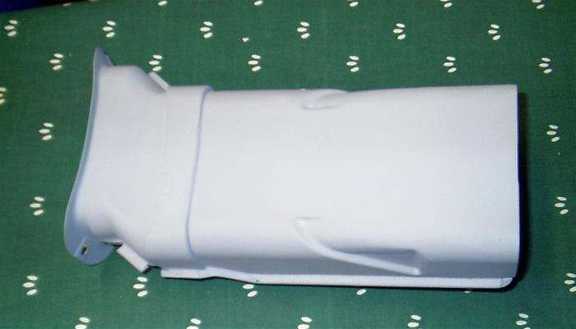

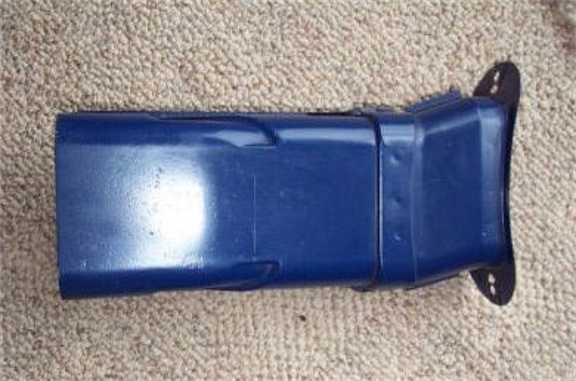

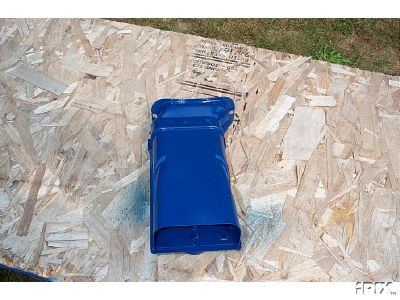

SCJ
Snorkel
|
SCJ
Snorkel |
SCJ
Snorkel |
SCJ
Snorkel
|
|

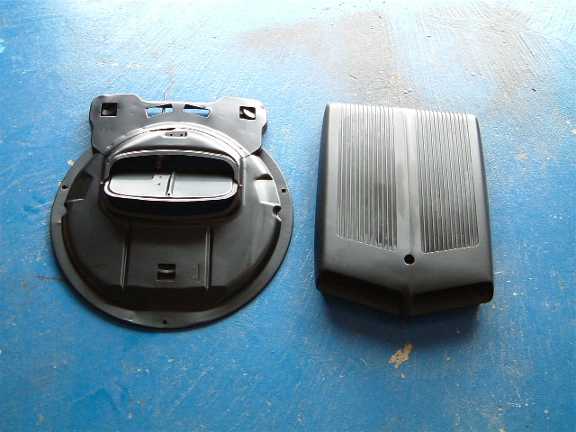

Mid
plate and shaker (top view)
|

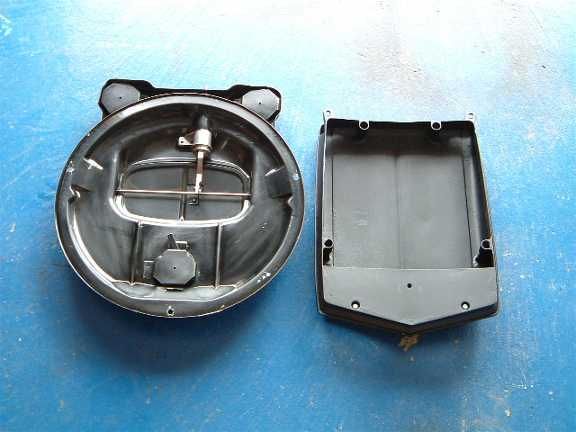

Mid
plate and shaker (bottom view)
|
Mid-plate
assembled |

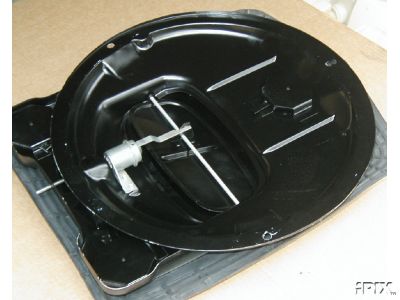

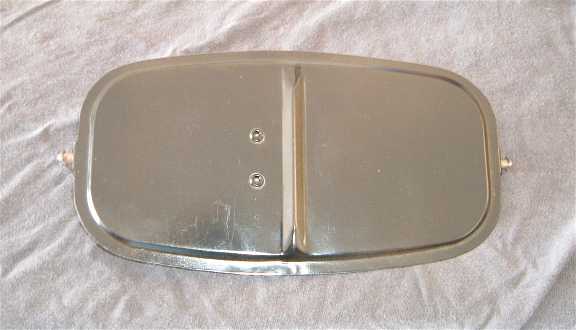

Mid-plate
flapper |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|

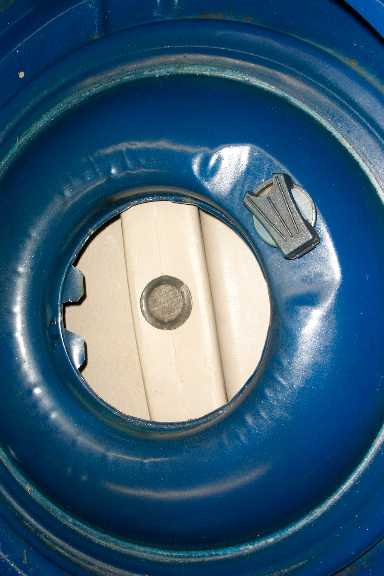

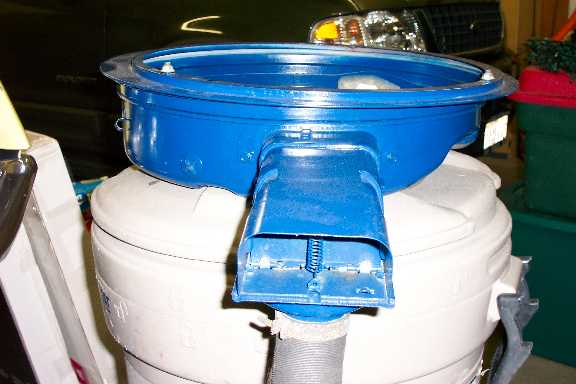

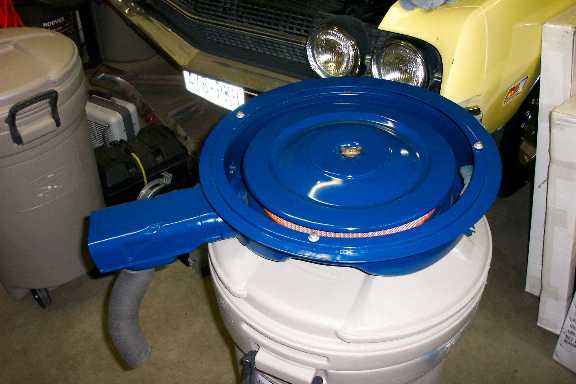

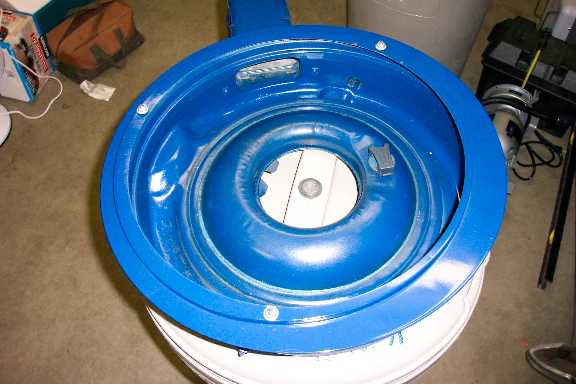

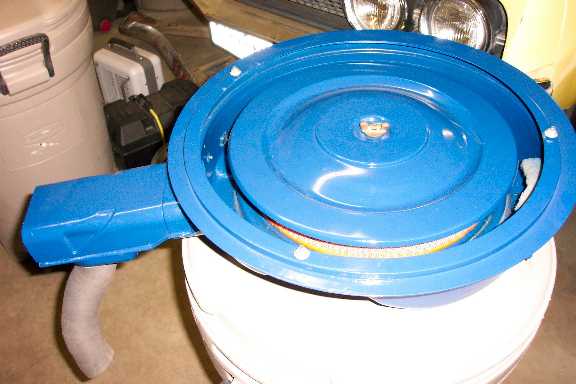

Sent
in by Jeff Pfaff. This is the shaker on his 1970 "N"
code.
|
The
overall diameter of the base is: 19 1/2" |
The
base snorkel opening is: 5 3/8" center to center |

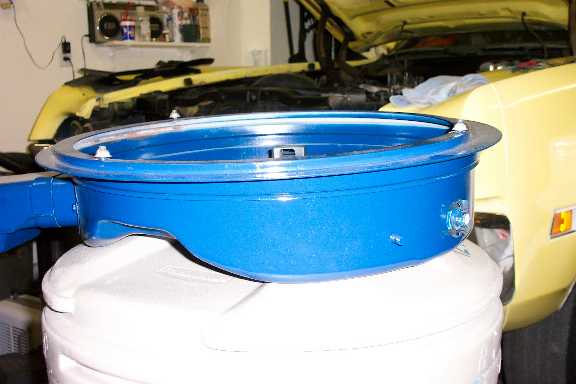

The
base height is: 4 5/8" |
|
|
The
flapper base (side that bolts to the base) is: 17 3/16"
|
All
documentation says that you couldn't get a shaker on an "N"
code car, however Jeff says that this fits like a glove. |
|
|
